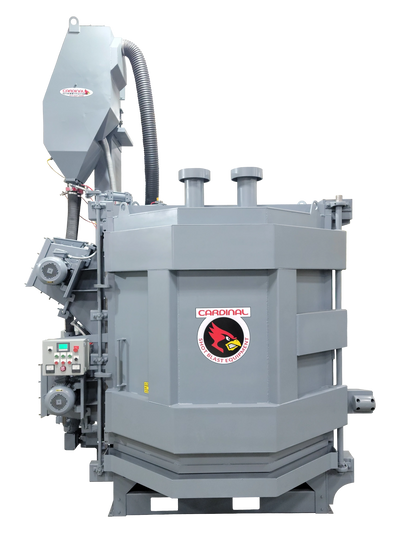

cardinal 72" table models

CARDINAL 72 TABLE

CARDINAL 72XT TABLE

CARDINAL 72XT TABLE

(1) 20HP BLAST WHEEL


WORKING DIMENSIONS:

72" DIAMETER, 37" HIGH

SPECIFICATIONS

CARDINAL 72XT TABLE

CARDINAL 72XT TABLE

CARDINAL 72XT TABLE

(2) 10HP BLAST WHEELS (OSCILLATING)


WORKING DIMENSIONS:

72" DIAMETER, 60" HIGH

SPECIFICATIONS

Cardinal 72 table

standard features

  • (1) 20hp Direct Drive Blast Wheel Assembly
  • Working Dimensions: 72" Diameter, 37" High
  • Max workload 10,000lbs
  • Single Lip 20" Separator
  • Electrical 480/208/3ph
  • Power Lock Door
  • Cabinet Constructed with AR400
  • AR400 Table Liner & Ring
  • AR400 Liners in Line with Blast Pattern
  • Cabinet & Door V-Notched
  • Touch Screen Controls
  • Low Level Sensor, Shield, & Indicator Light
  • Cast Elevator Buckets
  • Requires 2000 CFM Dust Collector


CENTRIFIGUL BLAST WHEEL

WHEEL: Single sided efficiently designed blast wheel reduces the overhung load on the motor as well as the time it takes to change blades, impellors, and control cage. Standard blast wheel is 12” in diameter and has seven curved blades for optimum abrasive control. Components are balanced for smooth operation. High horsepower to weight ratio increases the abrasive delivery per horsepower.


MOTOR: Direct drive motor revolves at 3600 RPM. Taper lock bushed motor shaft with NEMA tolerance.


BLADES: Snap lock design eases blade replacement, no tools required. Curved blades provide maximum abrasive control and are cast from abrasive resistant alloy. Cardinal wheels allow for easy change out of blades from 12", 13.5" or 15" diameter wheel(s).


CONTROL CAGE:  Dial type cage for ease of targeting the abrasive flow.


WHEEL HOUSING:  Steel plate is completely lined with cast chrome manganese alloy liners. All liners are replaceable.


TABLE CONSTRUCTION

 TABLE:  72” rotating table is made with 1/2” plate and lined with 3/8" AR400 liner. Optional Variable Speed Drive.


 OPTIMUM WORKING DIMENSIONS:  60" Diameter or diagonal, 30" high. Maximum is 72" diameter x 37" high. Work loading height is 28.5" with 10,000lb capacity.


CABINET CONSTRUCTION

 CABINET:  Fabricated from abrasive resistant plate. Tramp metal collected on lower abrasive screen. Cabinet notched for overhead hoist.


DOOR:  Air operated power lock. Abrasive resistant door.


ABRASIVE RECYCLING SYSTEM

BUCKET ELEVATOR:  Centrifugal discharge belt and bucket elevator. 5" elevator belt with cast buckets. Screw adjusted shaft take-ups provide positive belt alignment.


CABINET SCREEN:  Lower & upper screens are 1/4". If purchased, the optional rotary screen changes the primary screen in cabinet to 1/2" and secondary perforated rotary screen is 1/4".


ABRASIVE CONTROL VALVE:  Totally enclosed butterfly valves are air cylinder operated. Fully adjustable for abrasive flow control.


ABRASIVE SEPARATOR:  Single 20” lip separator.


ABRASIVE REQUIRED:  2000lbs.


VENTILATION

DUST COLLECTION:  Removes dust laden air from the machine while larger particles and abrasive are returned into the cabinet. Single 20” lip separator. 2000 CFM Required.


ELECTRICAL CONTROLS

CONTROL PANEL:

   • Type 12 electrical enclosure.

   • Thermal overload protection for all motors.

   • Standard 230/460volt ammeter.

   • Oil tight pushbutton controls.

   • Timer controls the abrasive flow.

   • Touch Screen PLC Controls.


SAFETY FEATURES:  Blast wheel operational only when door is closed. Air lock prevents cabinet door from opening during blast cycle. Adjustable time delay allows the flow of abrasive to brake the blast wheel before the door can be opened.


ELECTRIC MOTORS:  All motors are totally enclosed, and fan cooled to provide maximum life. Optional 230/460 volt 3-phase.


Single Blast Wheel:  20 Hp/3510RPM – 23.1amps @ 460volts

Optional 10Hp Blast Wheel: - 10 Hp/3510RPM – 23.2amps @ 460volts

Table Drive:  1 Hp/1800RPM - 1.61amps @ 460volts

Elevator Drive:  2 Hp/1800RPM – 6.2amps @ 460volts

Optional Rotary Screen:  1/2 Hp/1725RPM – 1.0amps @ 460volts

Optional Dust Collector:  5 Hp/3600RPM – 6.3amps @ 460volts


NOISE LEVEL:  Approximately 85 db.


DIMENSIONS

DIMENSIONS:

• Width: 118”

• Depth: 97”

• Height: 161”


WEIGHT:

Aproximately 8100lbs.


request quote

Cardinal 72XT Table

standard features

  • (2) 10hp Oscillating Blast Wheels
  • Working Dimensions: 72" Diameter, 60" High
  • Canted Upper Wheel Pod
  • Max workload 10,000lbs
  • Single Lip 20" Separator
  • Electrical 480/208/3ph
  • Power Lock Door
  • Cabinet RH Wall Manganese
  • Cabinet Door, RH Section Manganese
  • Table Liner & Table Ring Manganese
  • Cabinet Roof, Back Wall & LH Wall AR400
  • Cabinet & Door V-Notched
  • Touch Screen Controls
  • Low Level Sensor, Shield, & Indicator Light
  • Cast Elevator Buckets
  • Requires 2000 CFM Dust Collector


CENTRIFIGUL BLAST WHEEL

WHEEL: Single sided efficiently designed blast wheel reduces the overhung load on the motor as well as the time it takes to change blades, impellors, and control cage. Standard blast wheel is 12” in diameter and has seven curved blades for optimum abrasive control. Components are balanced for smooth operation. High horsepower to weight ratio increases the abrasive delivery per horsepower.


MOTOR: Direct drive motor revolves at 3600 RPM. Taper lock bushed motor shaft with NEMA tolerance.


BLADES: Snap lock design eases blade replacement, no tools required. Curved blades provide maximum abrasive control and are cast from abrasive resistant alloy. Cardinal wheels allow for easy change out of blades from 12", 13.5" or 15" diameter wheel(s).


CONTROL CAGE:  Dial type cage for ease of targeting the abrasive flow.


WHEEL HOUSING:  Steel plate is completely lined with cast chrome manganese alloy liners. All liners are replaceable.


TABLE CONSTRUCTION

 TABLE:  72” rotating table is made with 1/2” plate and lined with 3/8" manganese liner. Optional Variable Speed Drive.


 OPTIMUM WORKING DIMENSIONS:  60" Diameter or diagonal, 60" high. Maximum is 72" diameter x 60" high. Work loading height is 28.5" with 10,000lb capacity.


CABINET CONSTRUCTION

CABINET:  Fabricated from abrasive resistant plate. Tramp metal collected on lower abrasive screen. Cabinet notched for overhead hoist.


DOOR:  Air operated power lock. Abrasive resistant door.


ABRASIVE RECYCLING SYSTEM

BUCKET ELEVATOR:  Centrifugal discharge belt and bucket elevator. 5" elevator belt with cast buckets. Screw adjusted shaft take-ups provide positive belt alignment.


CABINET SCREEN:  Lower & upper screens are 1/4". If purchased, the optional rotary screen changes the primary screen in cabinet to 1/2" and secondary perforated rotary screen is 1/4".


ABRASIVE CONTROL VALVE:  Totally enclosed butterfly valves are air cylinder operated. Fully adjustable for abrasive flow control.


ABRASIVE SEPARATOR:  Single 20” lip separator.


ABRASIVE REQUIRED:  5000lbs.


VENTILATION

DUST COLLECTION:  Removes dust laden air from the machine while larger particles and abrasive are returned into the cabinet. Single 20” lip separator. 2000 CFM Required.


ELECTRICAL CONTROLS

CONTROL PANEL:

   • Type 12 electrical enclosure.

   • Thermal overload protection for all motors.

   • Standard 230/460volt ammeter.

   • Oil tight pushbutton controls.

   • Timer controls the abrasive flow.

   • Touch Screen PLC Controls.


SAFETY FEATURES:  Blast wheel operational only when door is closed. Air lock prevents cabinet door from opening during blast cycle. Adjustable time delay allows the flow of abrasive to brake the blast wheel before the door can be opened.


ELECTRIC MOTORS:  All motors are totally enclosed, and fan cooled to provide maximum life. Optional 230/460 volt 3-phase.


Blast Wheels:  (2) 20 Hp/3510RPM – 23.1amps @ 460volts

Table Drive:  1 Hp/1800RPM - 1.61amps @ 460volts

Elevator Drive:  2 Hp/1800RPM – 6.2amps @ 460volts

Optional Rotary Screen:  1/2 Hp/1725RPM – 1.0amps @ 460volts

Optional Dust Collector:  5 Hp/3600RPM – 6.3amps @ 460volts


NOISE LEVEL:  Approximately 85 db.


DIMENSIONS

DIMENSIONS:

• Width: 116”

• Depth: 96”

• Height: 186”


WEIGHT:

Approximately 10,500lbs.
