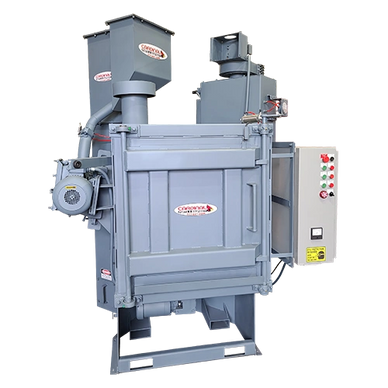

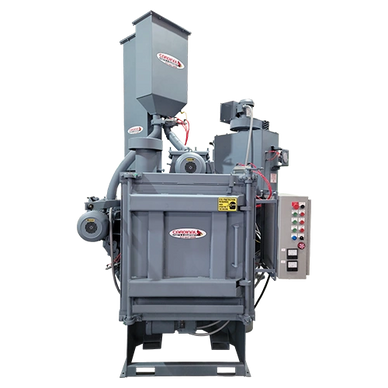

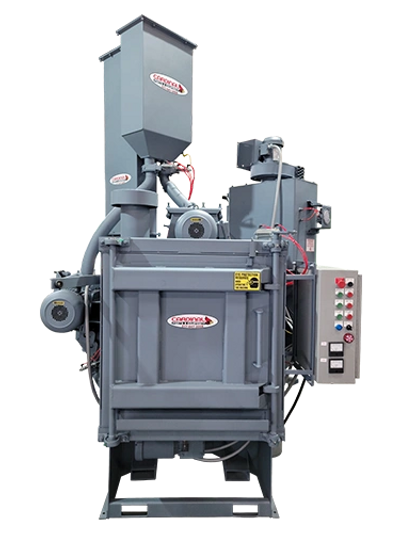

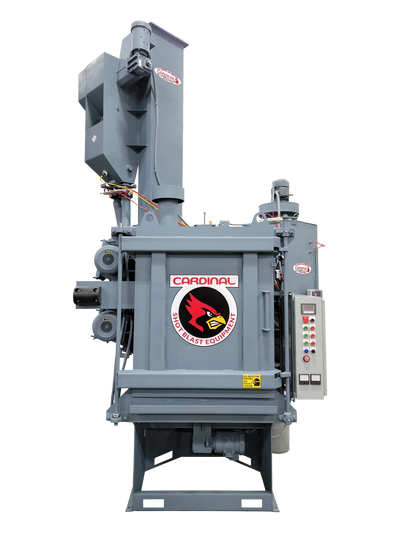

cardinal 36" table models

---

• (1) 5hp Direct Drive Blast Wheel Assembly
• Working Dimensions: 36" Diameter, 16" High
• Max workload 1,000 lbs
• 10" Diameter Blast Wheel
• Electrical 480/208/3ph
• PLC Controlled Timer
• Low Noise Level
• Safety Interlocks
• AR400 Table Liner
• Table Jog
• Pit Less Design
• AR400 Cabinet
• AR400 Hanging Liners on Side Walls, Rubber Lined
• Integrated 500 CFM Dust Collector

WHEEL: Single sided efficiently designed blast wheel reduces the overhung load on the motor as well as the time it takes to change blades, impellors, and control cage. Standard blast wheel is 10” in diameter and has four curved blades for optimum abrasive control. Components are balanced for smooth operation. High horsepower to weight ratio increases the abrasive delivery per horsepower.

MOTOR: Direct drive motor revolves at 3600 RPM. Taper lock bushed motor shaft with NEMA tolerance.

BLADES: Snap lock design eases blade replacement, no tools required. Curved blades provide maximum abrasive control and are cast from abrasive resistant alloy. Cardinal wheels allow for easy change out of blades.

CONTROL CAGE:  Dial type cage for ease of targeting the abrasive flow.

WHEEL HOUSING:  Steel plate is completely lined with cast chrome manganese alloy liners. All liners are replaceable.

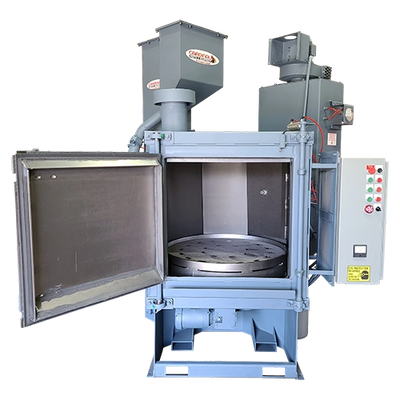

 TABLE:  36” rotating table is made with 1/4” plate and lined with an AR400 liner. Optional Variable Speed Drive.

 OPTIMUM WORKING DIMENSIONS:  36" Diameter or diagonal, 16" high side blast. Work loading height is 27" with 1,000 pound capacity.

CABINET:  Fabricated from 1/4" abrasive resistant plate. Tramp metal collected on lower abrasive screen. Cabinet notched for overhead hoist.

LINERS: Rubber lined cabinet with abrasive resistant liners in line with blast wheel.

DOOR:  Air operated power lock. 1/4" abrasive resistant door, rubber lined.


BUCKET ELEVATOR:  V-belt bucket elevator provides positive tracking and is easily adjusted.  Heavy duty C-section elevator belt has multiple cord construction. Metal stamped buckets. Solid cast iron elevator sheaves.  Hopper screen.

ABRASIVE CONTROL VALVE:  Totally enclosed butterfly valves are air cylinder operated. Fully adjustable for abrasive flow control.

ABRASIVE SEPARATOR:  Single 10” lip separator. *Optional

ABRASIVE REQUIRED:  300 pounds.

DUST COLLECTION:  Removes dust laden air from the machine while larger particles and abrasive are returned into the cabinet. Single 10” lip separator. 500 CFM Required.

CONTROL PANEL:

   • Type 12 electrical enclosure.

   • Thermal overload protection for all motors.

   • Standard 230/460volt ammeter.

   • Oil tight pushbutton controls.

   • Timer controls the abrasive flow.

   • Touch Screen PLC Controls.

SAFETY FEATURES:  Blast wheel operational only when door is closed. Air lock prevents cabinet door from opening during blast cycle. Adjustable time delay allows the flow of abrasive to brake the blast wheel before the door can be opened.

ELECTRIC MOTORS:  All motors are totally enclosed, and fan cooled to provide maximum life. Optional 230/460 volt 3-phase.

Blast Wheel:   5 Hp/3510RPM – 6.3amps @ 460volts

Table Drive:  1/2 Hp/1800RPM – 1.2amps @ 460volts

Elevator Drive: 3/4 Hp/1800RPM – 1.4amps @ 460volts

Dust Collector:  3 Hp/3600RPM – 3.8amps @ 460volts

NOISE LEVEL:  Approximately 85 db.

DIMENSIONS:

• Width: 77”

• Depth: 63”

• Height: 106”

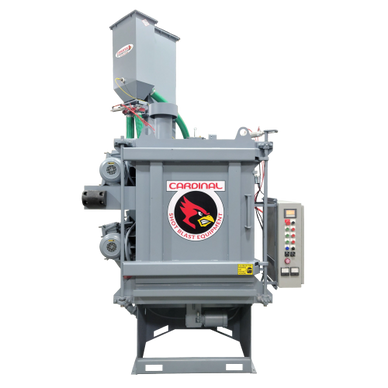

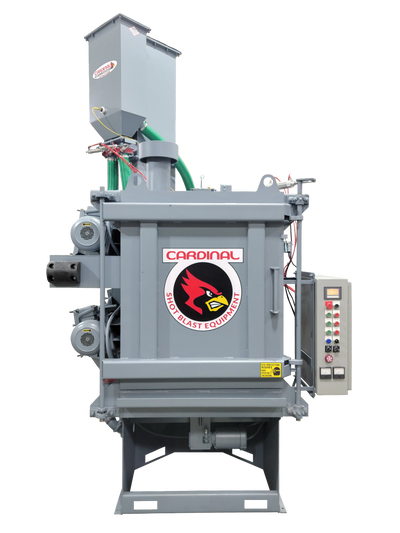

• (2) 5hp Direct Drive Blast Wheel Assemblies
• Working Dimensions: 36" Diameter, 22" High
• Max workload 1,000 lbs
• 10" Diameter Blast Wheels
• Electrical 480/208/3ph
• PLC Controlled Timer
• Low Noise Level
• Safety Interlocks
• AR400 Table Liner
• Table Jog
• Pit Less Design
• AR400 Cabinet
• AR400 Hanging Liners on Side Walls, Rubber Lined
• Integrated 500 CFM Dust Collector

WHEELS: Single sided efficiently designed blast wheel reduces the overhung load on the motor as well as the time it takes to change blades, impellors, and control cage. Standard blast wheel is 10” in diameter and has four curved blades for optimum abrasive control. Components are balanced for smooth operation. High horsepower to weight ratio increases the abrasive delivery per horsepower.

MOTOR: Direct drive motor revolves at 3600 RPM. Taper lock bushed motor shaft with NEMA tolerance.

BLADES: Snap lock design eases blade replacement, no tools required. Curved blades provide maximum abrasive control and are cast from abrasive resistant alloy. Cardinal wheels allow for easy change out of blades.

CONTROL CAGE:  Dial type cage for ease of targeting the abrasive flow.

WHEEL HOUSING:  Steel plate is completely lined with cast chrome manganese alloy liners. All liners are replaceable.

 TABLE:  36” rotating table is made with 1/4” plate and lined with an AR400 liner. Optional Variable Speed Drive.

 OPTIMUM WORKING DIMENSIONS:  36" Diameter or diagonal, 22" high side blast. Work loading height is 27" with 1,000 pound capacity.

CABINET:  Fabricated from 1/4" abrasive resistant plate. Tramp metal collected on lower abrasive screen. Cabinet notched for overhead hoist.

LINERS: Rubber lined cabinet with abrasive resistant liners in line with blast wheel.

DOOR:  Air operated power lock. 1/4" abrasive resistant door, rubber lined.


BUCKET ELEVATOR:  V-belt bucket elevator provides positive tracking and is easily adjusted.  Heavy duty C-section elevator belt has multiple cord construction. Metal stamped buckets. Solid cast iron elevator sheaves.  Hopper screen.

ABRASIVE CONTROL VALVE:  Totally enclosed butterfly valves are air cylinder operated. Fully adjustable for abrasive flow control.

ABRASIVE SEPARATOR:  Single 10” lip separator. *Optional

ABRASIVE REQUIRED:  300 pounds.

DUST COLLECTION:  Removes dust laden air from the machine while larger particles and abrasive are returned into the cabinet. Single 10” lip separator. 500 CFM Required.

CONTROL PANEL:

   • Type 12 electrical enclosure.

   • Thermal overload protection for all motors.

   • Standard 230/460volt ammeter.

   • Oil tight pushbutton controls.

   • Timer controls the abrasive flow.

   • Touch Screen PLC Controls.

SAFETY FEATURES:  Blast wheel operational only when door is closed. Air lock prevents cabinet door from opening during blast cycle. Adjustable time delay allows the flow of abrasive to brake the blast wheel before the door can be opened.

ELECTRIC MOTORS:  All motors are totally enclosed, and fan cooled to provide maximum life. Optional 230/460 volt 3-phase.

Blast Wheel #1:  5 Hp/3510RPM – 6.3amps @ 460volts

Blast Wheel #2:  5 Hp/3510RPM – 6.3amps @ 460volts

Table Drive:  1/2 Hp/1800RPM – 1.2amps @ 460volts

Elevator Drive: 3/4 Hp/1800RPM – 1.4amps @ 460volts

Dust Collector:  3 Hp/3600RPM – 3.8amps @ 460volts

NOISE LEVEL:  Approximately 85 db.

DIMENSIONS:

• Width: 77”

• Depth: 63”

• Height: 130”

WHEELS: Single sided efficiently designed blast wheel reduces the overhung load on the motor as well as the time it takes to change blades, impellors, and control cage. Standard blast wheel is 10” in diameter and has four curved blades for optimum abrasive control. Components are balanced for smooth operation. High horsepower to weight ratio increases the abrasive delivery per horsepower.

MOTOR: Direct drive motor revolves at 3600 RPM. Taper lock bushed motor shaft with NEMA tolerance.

BLADES: Snap lock design eases blade replacement, no tools required. Curved blades provide maximum abrasive control and are cast from abrasive resistant alloy. Cardinal wheels allow for easy change out of blades.

CONTROL CAGE:  Dial type cage for ease of targeting the abrasive flow.

WHEEL HOUSING:  Steel plate is completely lined with cast chrome manganese alloy liners. All liners are replaceable.

 TABLE:  36” rotating table is made with 1/4” plate and lined with an AR400 liner. Optional Variable Speed Drive.

 OPTIMUM WORKING DIMENSIONS:  36" Diameter or diagonal, 40" high side blast. Work loading height is 27" with 1,000 pound capacity.

CABINET:  Fabricated from 1/4" abrasive resistant plate. Tramp metal collected on lower abrasive screen. Pneumatic hatch for overhead hoist.

LINERS: Rubber lined cabinet with abrasive resistant liners in line with blast wheel.

DOOR:  Air operated power lock. 1/4" abrasive resistant door, rubber lined.


BUCKET ELEVATOR:  V-belt bucket elevator provides positive tracking and is easily adjusted.  Heavy duty C-section elevator belt has multiple cord construction. Metal stamped buckets. Solid cast iron elevator sheaves.  Hopper screen.

ABRASIVE CONTROL VALVE:  Totally enclosed butterfly valves are air cylinder operated. Fully adjustable for abrasive flow control.

ABRASIVE SEPARATOR:  Single 10” lip separator. *Optional

ABRASIVE REQUIRED:  400 pounds.

DUST COLLECTION:  Removes dust laden air from the machine while larger particles and abrasive are returned into the cabinet. Single 10” lip separator. 800 CFM Required.

CONTROL PANEL:

   • Type 12 electrical enclosure.

   • Thermal overload protection for all motors.

   • Standard 230/460volt ammeter.

   • Oil tight pushbutton controls.

   • Timer controls the abrasive flow.

   • Touch Screen PLC Controls.

SAFETY FEATURES:  Blast wheel operational only when door is closed. Air lock prevents cabinet door from opening during blast cycle. Adjustable time delay allows the flow of abrasive to brake the blast wheel before the door can be opened.

ELECTRIC MOTORS:  All motors are totally enclosed, and fan cooled to provide maximum life. Optional 230/460 volt 3-phase.

Blast Wheel #1:  5 Hp/3510RPM – 6.3amps @ 460volts

Blast Wheel #2:  5 Hp/3510RPM – 6.3amps @ 460volts

Table Drive:  1/2 Hp/1140RPM – 1.2amps @ 460volts

Elevator Drive: 3/4 Hp/1800RPM – 1.4amps @ 460volts

Dust Collector:  3 Hp/3600RPM – 3.8amps @ 460volts

NOISE LEVEL:  Approximately 85 db.

DIMENSIONS:

• Width: 77”

• Depth: 63”

• Height: 142”

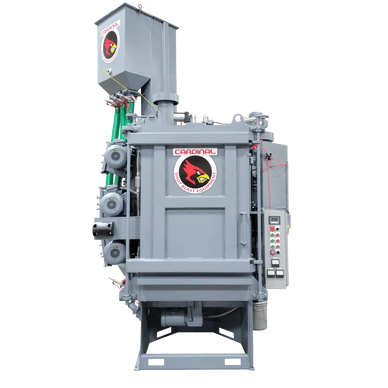

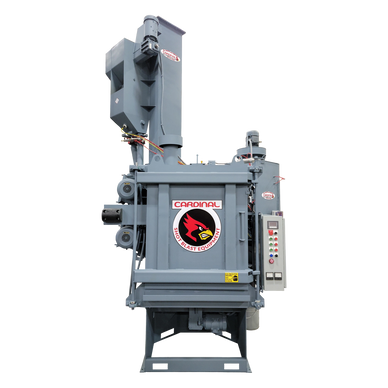

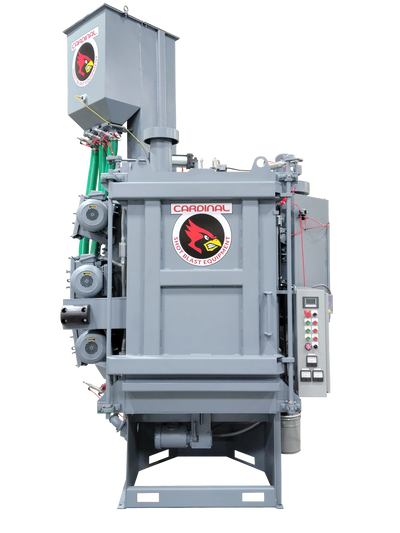

• (3) 5hp Oscillating Direct Drive Blast Wheel Assemblies
• Working Dimensions: 36" Diameter, 64" High
• Adder Hopper
• Max workload 1,000 lbs
• 10" Diameter Blast Wheels
• Electrical 480/208/3ph
• PLC Controlled Timer
• Low Noise Level
• Safety Interlocks
• AR400 Table Liner
• Table Jog
• Pit Less Design
• AR400 Cabinet
• Cast Lined Right Wall, Back & Left Walls Rubber Lined
• Pneumatic Roof Hatch for Easy Table Loading
• Integrated 1200 CFM Dust Collector

WHEELS: Single sided efficiently designed blast wheel reduces the overhung load on the motor as well as the time it takes to change blades, impellors, and control cage. Standard blast wheel is 10” in diameter and has four curved blades for optimum abrasive control. Components are balanced for smooth operation. High horsepower to weight ratio increases the abrasive delivery per horsepower.

MOTOR: Direct drive motor revolves at 3600 RPM. Taper lock bushed motor shaft with NEMA tolerance.

BLADES: Snap lock design eases blade replacement, no tools required. Curved blades provide maximum abrasive control and are cast from abrasive resistant alloy. Cardinal wheels allow for easy change out of blades.

CONTROL CAGE:  Dial type cage for ease of targeting the abrasive flow.

WHEEL HOUSING:  Steel plate is completely lined with cast chrome manganese alloy liners. All liners are replaceable.

 TABLE:  36” rotating table is made with 1/4” plate and lined with an AR400 liner. Optional Variable Speed Drive.

 OPTIMUM WORKING DIMENSIONS:  36" Diameter or diagonal, 40" high side blast. Work loading height is 27" with 1,000 pound capacity.

CABINET:  Fabricated from 1/4" abrasive resistant plate. Tramp metal collected on lower abrasive screen. Pneumatic hatch for overhead hoist.

LINERS: Rubber lined cabinet with abrasive resistant liners in line with blast wheel.

DOOR:  Air operated power lock. 1/4" abrasive resistant door, rubber lined.


BUCKET ELEVATOR:  V-belt bucket elevator provides positive tracking and is easily adjusted.  Heavy duty C-section elevator belt has multiple cord construction. Metal stamped buckets. Solid cast iron elevator sheaves.  Hopper screen.

ABRASIVE CONTROL VALVE:  Totally enclosed butterfly valves are air cylinder operated. Fully adjustable for abrasive flow control.

ABRASIVE SEPARATOR:  Single 10” lip separator. *Optional

ABRASIVE REQUIRED:  800 pounds.

DUST COLLECTION:  Removes dust laden air from the machine while larger particles and abrasive are returned into the cabinet. Single 10” lip separator. 1200 CFM Required.

CONTROL PANEL:

   • Type 12 electrical enclosure.

   • Thermal overload protection for all motors.

   • Standard 230/460volt ammeter.

   • Oil tight pushbutton controls.

   • Timer controls the abrasive flow.

   • Touch Screen PLC Controls.

SAFETY FEATURES:  Blast wheel operational only when door is closed. Air lock prevents cabinet door from opening during blast cycle. Adjustable time delay allows the flow of abrasive to brake the blast wheel before the door can be opened.

ELECTRIC MOTORS:  All motors are totally enclosed, and fan cooled to provide maximum life. Optional 230/460 volt 3-phase.

Blast Wheel #1:  5 Hp/3510RPM – 6.3amps @ 460volts

Blast Wheel #2:  5 Hp/3510RPM – 6.3amps @ 460volts

Blast Wheel #3:  5 Hp/3510RPM – 6.3amps @ 460volts

Table Drive:  1/2 Hp/1140RPM – 1.2amps @ 460volts

Elevator Drive: 1.5 Hp/1800RPM – 1.9 amps @ 460volts

Dust Collector:  3 Hp/3600RPM – 3.8amps @ 460volts

NOISE LEVEL:  Approximately 85 db.

DIMENSIONS:

• Width: 77”

• Depth: 63”

• Height: 166”
