CARDINAL 24" TABLE MODELS

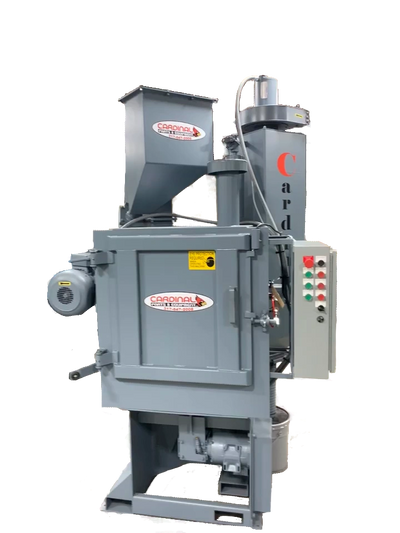

CARDINAL 24 TABLE

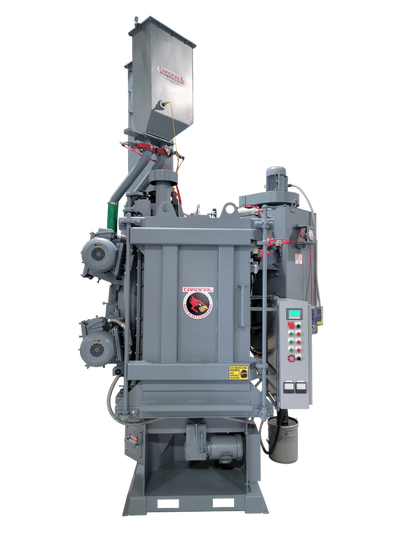

CARDINAL 24XT & 24XTS TABLE
CARDINAL 24TW TABLE
- Single Side Mounted 5hp Blast Wheel Assembly
- 24" Diameter Turn Table
- 16" Tall Blast Cleaning Zone

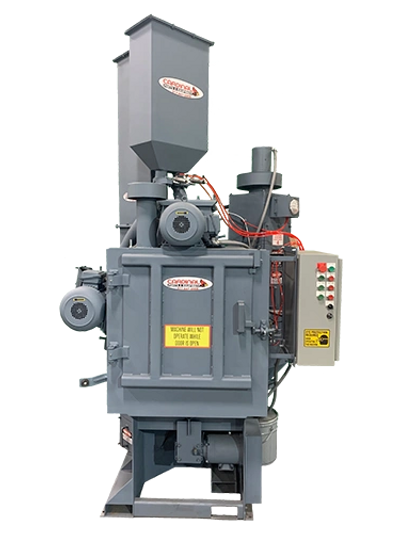

CARDINAL 24TW TABLE
CARDINAL 24XT & 24XTS TABLE
CARDINAL 24TW TABLE
- Side & Top Mounted 5hp Blast Wheel Assemblies
- 24" Diameter Turn Table
- 22" Tall Blast Cleaning Zone
CARDINAL 24XT & 24XTS TABLE
CARDINAL 24XT & 24XTS TABLE
CARDINAL 24XT & 24XTS TABLE
- (2) Side Mounted 5hp Blast Wheel Assemblies
- 24" Diameter Turn Table
- 40" Tall Blast Cleaning Zone

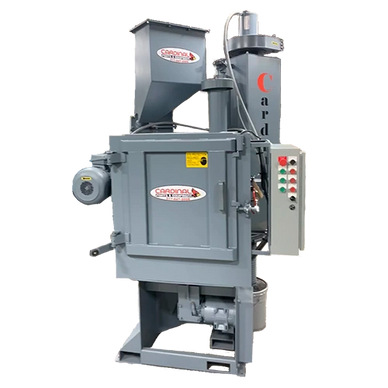

Cardinal 24 Table
STANDARD FEATURES
- 5 Hp Direct Drive Blast Wheel Assy.
- Max Workload 400lb
- 10" Diameter Blast Wheel
- 24” Table With 16" Blast Cleaning Zone
- Electrical 460/208/3ph
- Plc Controlled Timer
- Low Noise Level
- Safety Interlocks
- AR400 Cabinet Construction
- Rubber Lined Cabinet & Door, AR400 In Line with Blast Wheel
- CARDINAL 400 CFM INTEGRAL DUST COLLECTOR
CENTRIFIGUL BLAST WHEEL
WHEEL: Single sided efficiently designed blast wheel reduces the overhung load on the motor as well as the time it takes to change blades, impellors, and control cage. Standard blast wheel is 10” in diameter and has four curved blades for optimum abrasive control. Components are balanced for smooth operation. High horsepower to weight ratio increases the abrasive delivery per horsepower.
MOTOR: Direct drive motor revolves at 3600 RPM. Taper lock bushed motor shaft with NEMA tolerance.
BLADES: Snap lock design eases blade replacement, no tools required. Curved blades provide maximum abrasive control and are cast from abrasive resistant alloy. Cardinal wheels allow for easy change out of blades.
CONTROL CAGE: Dial type cage for ease of targeting the abrasive flow.
WHEEL HOUSING: Steel plate is completely lined with cast chrome manganese alloy liners. All liners are replaceable.
TABLE CONSTRUCTION
TABLE: 24” rotating table is made with ¼” plate and lined with a AR400 liner. Optional Variable Speed Drive.
MAXIMUM WORKING DIMENSIONS: 24” Diameter or diagonal, 16” high. Work Loading height is 27” with 400 pound capacity.
CABINET CONSTRUCTION
CABINET: Fabricated from 1/4” abrasive resistant plate. Tramp metal collected on lower abrasive screen. Cabinet notched for overhead hoist.
LINERS: Rubber lined cabinet with abrasive resistant liners in line with blast wheel.
DOOR: Air operated power lock. 1/4” abrasive resistant door, rubber lined.
ABRASIVE RECYCLING SYSTEM
ELEVATOR: V-belt bucket elevator provides positive tracking and is easily adjusted. Heavy duty C-section elevator belt has multiple cord construction. Metal stamped buckets. Solid cast iron elevator sheaves. Hopper screen.
ABRASIVE CONTROL VALVE: Totally enclosed butterfly valves are air cylinder operated. Fully adjustable for abrasive flow control.
ABRASIVE SEPARATOR: Single 10” lip separator. Optional
ABRASIVE REQUIRED: 300 pounds.
VENTILATION
DUST COLLECTION: Removes dust laden air from the machine while larger particles and abrasive are returned into the cabinet. Single 10” lip separator. Integrated 400 CFM Dust Collector mounted to machine.
electrical controls
CONTROL PANEL:
• Type 12 electrical enclosure.
• Thermal overload protection for all motors.
• Standard 230/460volt ammeter.
• Oil tight pushbutton controls.
• Timer controls the abrasive flow.
• Touch Screen PLC Controls.
SAFETY FEATURES: Blast wheel operational only when door is closed. Air lock prevents cabinet door from opening during blast cycle. Adjustable time delay allows the flow of abrasive to brake the blast wheel before the door can be opened.
ELECTRIC MOTORS: All motors are totally enclosed, and fan cooled to provide maximum life. Optional 230/460 volt 3-phase.
Blast Wheel: 5 Hp/3510RPM – 6.01amps @ 460volts
Table Drive : 1/2 Hp/1140RPM – 1.0amps @ 460volts
Elevator Drive: 1/2 Hp/1725RPM – .95amps @ 460volts
Dust Collector: 1/2 Hp/3450RPM – 1.0amps @ 460volts
NOISE LEVEL: Approximately 85 db.
DIMENSIONS
DIMENSIONS:
• Width: 70”
• Depth: 51”
• Height: 102”
SHIPPING WEIGHT: Approximately 2000 pounds.
*SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Cardinal 24TW TABLE
STANDARD FEATURES
- (2) 5 Hp Direct Drive Blast Wheel Assemblies.
- Max Workload 400lb
- 10" Diameter Blast Wheels
- 24” Table With 22” Blast Cleaning Zone
- Electrical 460/208/3ph
- Plc Controlled Timer
- Low Noise Level
- Safety Interlocks
- AR400 Cabinet Construction
- Rubber Lined Cabinet & Door, AR400 In Line with Blast Wheel
- CARDINAL 400 CFM INTEGRAL DUST COLLECTOR
CENTRIFIGUL BLAST WHEEL
WHEEL: Single sided efficiently designed blast wheel reduces the overhung load on the motor as well as the time it takes to change blades, impellors, and control cage. Standard blast wheel is 10” in diameter and has four curved blades for optimum abrasive control. Components are balanced for smooth operation. High horsepower to weight ratio increases the abrasive delivery per horsepower.
MOTOR: Direct drive motor revolves at 3600 RPM. Taper lock bushed motor shaft with NEMA tolerance.
BLADES: Snap lock design eases blade replacement, no tools required. Curved blades provide maximum abrasive control and are cast from abrasive resistant alloy. Cardinal wheels allow for easy change out of blades.
CONTROL CAGE: Dial type cage for ease of targeting the abrasive flow.
WHEEL HOUSING: Steel plate is completely lined with cast chrome manganese alloy liners. All liners are replaceable.
TABLE CONSTRUCTION
TABLE: 24” rotating table is made with ¼” plate and lined with a AR400 liner. Optional Variable Speed Drive.
MAXIMUM WORKING DIMENSIONS: 24” Diameter or diagonal, 22” high. Work Loading height is 27” with 400 pound capacity.
CABINET CONSTRUCTION
CABINET: Fabricated from 1/4” abrasive resistant plate. Tramp metal collected on lower abrasive screen. Cabinet notched for overhead hoist.
LINERS: Rubber lined cabinet with abrasive resistant liners in line with blast wheel.
DOOR: Air operated power lock. 1/4” abrasive resistant door, rubber lined.
ABRASIVE RECYCLING SYSTEM
ELEVATOR: V-belt bucket elevator provides positive tracking and is easily adjusted. Heavy duty C-section elevator belt has multiple cord construction. Metal stamped buckets. Solid cast iron elevator sheaves. Hopper screen.
ABRASIVE CONTROL VALVE: Totally enclosed butterfly valves are air cylinder operated. Fully adjustable for abrasive flow control.
ABRASIVE SEPARATOR: Single 10” lip separator. Optional
ABRASIVE REQUIRED: 300 pounds.
VENTILATION
DUST COLLECTION: Removes dust laden air from the machine while larger particles and abrasive are returned into the cabinet. Single 10” lip separator. Integrated 400 CFM Dust Collector mounted to machine.
electrical controls
CONTROL PANEL:
• Type 12 electrical enclosure.
• Thermal overload protection for all motors.
• Standard 230/460volt ammeter.
• Oil tight pushbutton controls.
• Timer controls the abrasive flow.
• Touch Screen PLC Controls.
SAFETY FEATURES: Blast wheel operational only when door is closed. Air lock prevents cabinet door from opening during blast cycle. Adjustable time delay allows the flow of abrasive to brake the blast wheel before the door can be opened.
ELECTRIC MOTORS: All motors are totally enclosed, and fan cooled to provide maximum life. Optional 230/460 volt 3-phase.
Side Blast Wheel: 5 Hp/3510RPM – 6.01amps @ 460volts
Top Blast Wheel: 5 Hp/3510RPM – 6.01amps @ 460volts
Table Drive : 1/2 Hp/1140RPM – 1.0amps @ 460volts
Elevator Drive: 1/2 Hp/1725RPM – .95amps @ 460volts
Dust Collector: 1/2 Hp/3450RPM – 1.0amps @ 460volts
NOISE LEVEL: Approximately 85 db.
DIMENSIONS
DIMENSIONS:
• Width: 70”
• Depth: 51”
• Height: 119”
SHIPPING WEIGHT: Approximately 2000 pounds.
*SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

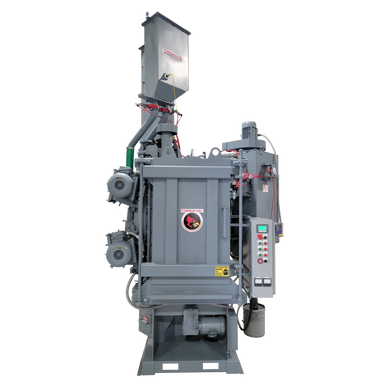

Cardinal 24xt & 24XTS tableS
STANDARD FEATURES
- (2) 5 Hp Side Mounted Direct Drive Blast Wheel Assemblies.
- Max Workload 400lb
- 10" Diameter Blast Wheels
- 24” Table With 40” Blast Cleaning Zone
- Electrical 460/208/3ph
- Plc Controlled Timer
- Low Noise Level
- Safety Interlocks
- AR400 Cabinet Construction
- Rubber Lined Cabinet & Door, AR400 In Line with Blast Wheel
- Pneumatic Hatch For Easy Table Loading
- CARDINAL 800 CFM INTEGRAL DUST COLLECTOR
CENTRIFIGUL BLAST WHEEL
WHEEL: Single sided efficiently designed blast wheel reduces the overhung load on the motor as well as the time it takes to change blades, impellors, and control cage. Standard blast wheel is 10” in diameter and has four curved blades for optimum abrasive control. Components are balanced for smooth operation. High horsepower to weight ratio increases the abrasive delivery per horsepower.
MOTOR: Direct drive motor revolves at 3600 RPM. Taper lock bushed motor shaft with NEMA tolerance.
BLADES: Snap lock design eases blade replacement, no tools required. Curved blades provide maximum abrasive control and are cast from abrasive resistant alloy. Cardinal wheels allow for easy change out of blades.
CONTROL CAGE: Dial type cage for ease of targeting the abrasive flow.
WHEEL HOUSING: Steel plate is completely lined with cast chrome manganese alloy liners. All liners are replaceable.
TABLE CONSTRUCTION
TABLE: 24” rotating table is made with ¼” plate and lined with a AR400 liner. Optional Variable Speed Drive.
MAXIMUM WORKING DIMENSIONS: 24” Diameter or diagonal, 40” high. Work Loading height is 27” with 400 pound capacity.
CABINET CONSTRUCTION
CABINET: Fabricated from 1/4” abrasive resistant plate. Tramp metal collected on lower abrasive screen. Cabinet notched for overhead hoist.
LINERS: Rubber lined cabinet with abrasive resistant liners in line with blast wheel.
DOOR: Air operated power lock. 1/4” abrasive resistant door, rubber lined.
ABRASIVE RECYCLING SYSTEM
ELEVATOR: V-belt bucket elevator provides positive tracking and is easily adjusted. Heavy duty C-section elevator belt has multiple cord construction. Metal stamped buckets. Solid cast iron elevator sheaves. Hopper screen.
ABRASIVE CONTROL VALVE: Totally enclosed butterfly valves are air cylinder operated. Fully adjustable for abrasive flow control.
ABRASIVE SEPARATOR: Single 10” lip separator. Optional
ABRASIVE REQUIRED: 400 pounds.
VENTILATION
DUST COLLECTION: Removes dust laden air from the machine while larger particles and abrasive are returned into the cabinet. Single 10” lip separator. Integrated 800 CFM Dust Collector mounted to machine includes support legs.
electrical controls
CONTROL PANEL:
• Type 12 electrical enclosure.
• Thermal overload protection for all motors.
• Standard 230/460volt ammeter.
• Oil tight pushbutton controls.
• Timer controls the abrasive flow.
• Touch Screen PLC Controls.
SAFETY FEATURES: Blast wheel operational only when door is closed. Air lock prevents cabinet door from opening during blast cycle. Adjustable time delay allows the flow of abrasive to brake the blast wheel before the door can be opened.
ELECTRIC MOTORS: All motors are totally enclosed, and fan cooled to provide maximum life. Optional 230/460 volt 3-phase.
Top Blast Wheel: 5 Hp/3510RPM – 6.01amps @ 460volts
Bottom Blast Wheel: 5 Hp/3510RPM – 6.01amps @ 460volts
Table Drive : 1/2 Hp/1140RPM – 1.0amps @ 460volts
Elevator Drive: 1/2 Hp/1725RPM – .95amps @ 460volts
Dust Collector: 3 Hp/3450RPM – 3.8amps @ 460volts
NOISE LEVEL: Approximately 85 db.
DIMENSIONS
DIMENSIONS:
• Width: 70”
• Depth: 51”
• Height: 132”
SHIPPING WEIGHT: Approximately 2250 pounds.
*SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
