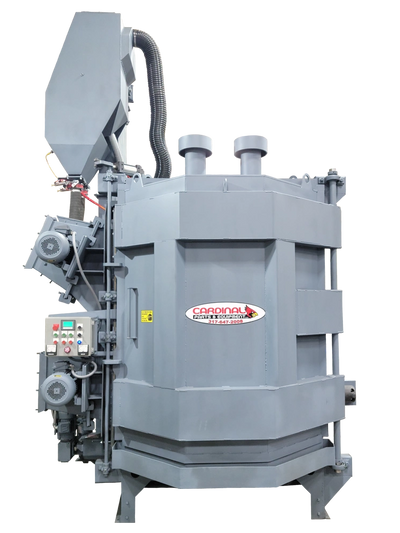

Cardinal 60xt table

---

WHEEL: Single sided efficiently designed blast wheel reduces the overhung load on the motor as well as the time it takes to change blades, impellors, and control cage. Standard blast wheel is 12” in diameter and has seven curved blades for optimum abrasive control. Components are balanced for smooth operation. High horsepower to weight ratio increases the abrasive delivery per horsepower.

MOTOR: Direct drive motor revolves at 3600 RPM. Taper lock bushed motor shaft with NEMA tolerance.

BLADES: Snap lock design eases blade replacement, no tools required. Curved blades provide maximum abrasive control and are cast from abrasive resistant alloy. Cardinal wheels allow for easy change out of blades from 12”, 13.5”, or 15” diameter wheel(s). This allows flexibility to either cycle more media by having a smaller diameter wheel or a greater velocity with the larger diameter wheel.

CONTROL CAGE:  Dial type cage for ease of targeting the abrasive flow.

WHEEL HOUSING:  Steel plate is completely lined with cast chrome manganese alloy liners. All liners are replaceable.

 TABLE:  60” rotating table is made with 1/2” plate and lined with a 3/8” manganese liner. Optional Variable Speed Drive.

 OPTIMUM WORKING DIMENSIONS:  48” X 60” high. Maximum is 60” diameter x 60” high. Work Loading height is 28.5” with 5,000pound capacity.

CABINET:  Fabricated from abrasive resistant plate. Tramp metal collected on lower abrasive screen. Cabinet notched for overhead hoist.

DOOR:  Air operated power lock. Abrasive resistant door.


BUCKET ELEVATOR:  Centrifugal discharge belt and bucket elevator. 5” Elevator Belt with Poly Buckets. Screw adjusted shaft take-ups provide positive belt alignment.

CABINET SCREEN:  Lower & upper screens are ¼”. If purchased the optional Rotary Screen changes the Primary screen in cabinet to 1/2” and secondary perforated rotary screen is 1/4”.

ABRASIVE CONTROL VALVE:  Totally enclosed butterfly valves are air cylinder operated. Fully adjustable for abrasive flow control.

ABRASIVE SEPARATOR:  Single 20” lip separator.

ABRASIVE REQUIRED:  2000 pounds.

DUST COLLECTION:  Removes dust laden air from the machine while larger particles and abrasive are returned into the cabinet. Single 20” lip separator. 2000 CFM Required.

CONTROL PANEL:

   • Type 12 electrical enclosure.

   • Thermal overload protection for all motors.

   • Standard 230/460volt ammeter.

   • Oil tight pushbutton controls.

   • Timer controls the abrasive flow.

   • Touch Screen PLC Controls.

SAFETY FEATURES:  Blast wheel operational only when door is closed. Air lock prevents cabinet door from opening during blast cycle. Adjustable time delay allows the flow of abrasive to brake the blast wheel before the door can be opened.

ELECTRIC MOTORS:  All motors are totally enclosed, and fan cooled to provide maximum life. Optional 230/460 volt 3-phase.

Blast Wheels:  (2) 10 Hp/3510RPM – 23.2amps @ 460volts

Table Drive:  1 Hp/1800RPM – 1.61amps @ 460volts

Elevator Drive: 2 Hp/1800RPM – 6.2amps @ 460volts

Optional Rotary Screen:  1/2 Hp/1725RPM – 1.0amps @ 460volts

Optional Dust Collector:  5 Hp/3600RPM – 6.3amps @ 460volts

NOISE LEVEL:  Approximately 85 db.

DIMENSIONS:

• Width: 126”

• Depth: 102”

• Height: 180”

SHIPPING WEIGHT:  Approximately 8500 pounds.
