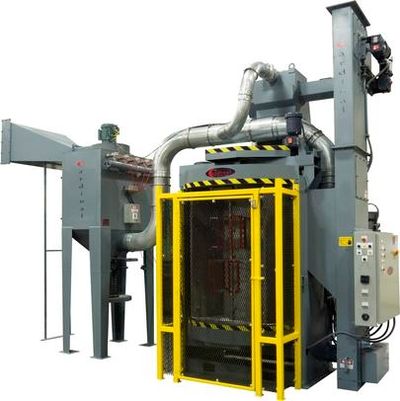

Cardinal 2460 Spinner Hanger
CENTRIFUGAL BLAST WHEEL
WHEEL Two direct drive blast wheels revolve at 3510 RPM. Standard blast wheel is 12” in diameter and has seven curved blades. Components are balanced for smooth operation.
BLADES Snap-lock design eases blade replacement. Curved blades provide maximum abrasive control
and are cast from abrasive resistant alloy.
CONTROL CAGE Dial type cage.
WHEEL HOUSING 1/4” steel plate, completely lined with alloy steel liners.
All liners are replaceable.
CABINET CONSTRUCTION
CABINET Pit-less type, all welded structurally reinforced cabinet is fabricated from ¼” steel plate. Rear access door. Back wall ½” Manganese.
CAROUSEL CONSTRUCTION
DUAL CHAMBER CAROUSEL Structurally reinforced and fully welded carousel is fabricated from ¼” and 3/8” steel plate. Carousel revolves on a 3” diameter shaft supported by a heavy duty thrust bearing. Hook spindles are provided on each chamber.
LINING The carousel chambers lined with cast alloy. Top and bottom of chambers lined with abrasive resistant steel.
DRIVE Carousel revolved by an electric motor and gear reducer activating a low-speed high-torque “HTD” type drive assembly. PLC programming eliminates old-style mechanical relays and timers and allows for easier troubleshooting. Adjustable stops on carousel top working in conjunction with proximity switches provide variable indexing.
HOOK SPINDLE Continual rotation of hook spindle during blasting operation provides full exposure of parts to the blast pattern.
OPTIMUM BLAST COVERAGE
Maximum area provided for material to be blasted is 24” diameter x 48” long.
HOOK SPINDLE CAPACITY
1,500 pounds maximum
HOOK SPINDLE SPEED
ADJUSTABLE
ABRASIVE RECYCLING SYSTEM
SCREW CONVEYOR Heavy duty 6” screws.
ELEVATOR Centrifugal discharge belt and bucket elevator. Screw adjusted shaft take-ups provide positive belt alignment.
ABRASIVE SCREENING Primary screen in cabinet is ½” x ½” and secondary perforated rotary screen is ¼”.
SEPARATOR Single 20” lip separator.
ABRASIVE CONTROL VALVES Totally enclosed butterfly valves are air cylinder operated and fully adjustable for abrasive flow control.
ABRASIVE REQUIRED 2,000 pounds.
VENTILATION
*OPTIONAL DUST COLLECTOR Requires 2,000 CFM
ELECTRICS
Type 12 electrical enclosed, thermal overload protection for all motors, standard 230/460 volt ammeter, oil tight push-button controls. Timer controls the abrasive flow.
ELECTRIC MOTORS
All motors are totally enclosed and fan cooled to provide maximum life. Standard 230/460 volt 3-phase.
Blast Wheels (2) 10HP/3510RPM
Carousel Drive 3/4HP/1725RPM
Elevator Drive 1HP/1800RPM
Hook Spindle Drive 1/2HP/1140RPM
Rotary Screen 1/2HP/1725RPM
SAFETY FEATURES
Blast wheel operational only when rear door is securely closed. Abrasive valves operative only during timed blast cycle. Master stop button.
NOISE LEVEL
Approximately 85 db.
SHIPPING WEIGHT
Approximately 10,000 pounds.
DIMENSIONS
Width: 96”
Depth: 79”
Height: 160.5”
*SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
